2500 ℃ sintering furnace

Current position:Home > Products > Induction furnace > 2500 ℃ sintering furnace

  • Tungsten carbide sintering furnace
  • Tungsten carbide sintering furnace
  • Tungsten carbide sintering furnace
  • Tungsten carbide sintering furnace

Tungsten carbide sintering furnace

The equipment is batch type induction furnace, mainly used in tungsten carbide, silicon carbide, calcium carbide, metal, billets, powder metallurgy,vanadium carbide powder and such as metal powder and composite metal powder.

Introduction

  • Application:
    The equipment is batch type induction furnace,mainly used in tungsten carbide,silicon carbide,boron carbide,polysilicon material,calcium carbide,sapphire,Rare earth oxide,metal,billets,powder metallurgy,vanadium carbide powder and such as metal powder and composite metal powder.
    Configuration:
    380V±10%,50Hz/60Hz 3 phase 5 wire
    One control cabinet to one furnace and optional for one to two type or one to four type.

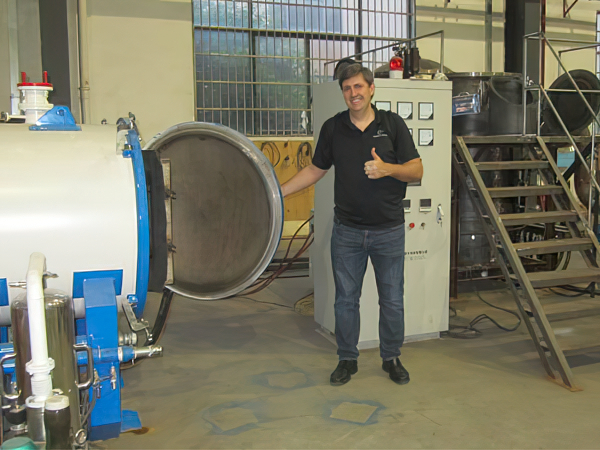

    The pics of furnace:




    Model

    Parameter

    Lab usage

    Production usage

    NTI-SJL-54W

    NTI-SJL-98W

    NTI-SJL-300W

    NTI-SJL-400W

    NTI-SJL-1280W

    NTI-SJL-1620W

    Working size

    mm

    300×300×600

    350×350×800

    500×500×1200

    500×500×1600

    800×800×2000

    900×900×2000

    Heating type

    /

    IF induction heating

    Crucible

    /

    Graphite

    Control type

    /

    Thyristor control or IGBT control ( optional )

    HT zone capacity

    L

    54

    98

    300

    400

    1280

    1620

    Loading weight

    g

      HT zone capacity × density (g/cm³)×1000        Remark:1L=1000cm³

    Ultimate vacuum

    Pa

    20

    IF power

    Kw

    120

    160

    200

    250

    400

    600

    Max. working temperature

    ℃

    2500

    2500

    2500

    2500

    2500

    2500

    Usual working temperature

    ℃

    2400

    2400

    2400

    2400

    2400

    2400

    Temperature unifomity

    ℃

    ±10

    ±10

    ±10

    ±10

    ±10

    ±10

    Overall dimension

    mm













    Weight

    Kg













    Working environment

    /

    Vacuum or Argon atmosphere protection( micro positive pressure)

    You can customize it as per your real requirement.



    Feature:

    1.Furnace door:Rotary hinge; manual / automatic lock tight

    2.Furnace shell:all carbon steel/stainless steel inner/all stainless steel

    3.Furnace inner liner :Soft carbon felt and hard composite felt / full hard composite felt

    4. Heater material: Static pressuregraphite / three-high graphite molding

    5.Furnace body:vertical type/ horizontal type

    6.Gas circuit control:volume/mass flow-meter;manual value/automatic value;import/domestic

    7.Vacuum pumps and vacuum gauges: import / domestic

    8. Skip: raceway / forklift

    9.Operation panel:Analog screen / touch screen / industrial control machine

    10.PLC:Delta / Omron / Siemens / Mitsubishi

    11.Temperature control instrument: shimaden /oulu

    12. Temperature measuring type: Infrared optics temperature measuring instrument/ C index number thermocouple (wolfram / Mo / ceramic bushing)

    13. Recorder: paperless recorder / paper recorder; import / domestic

    14. Electrical element: CHINT / Schneider / SIEMENS /ABB

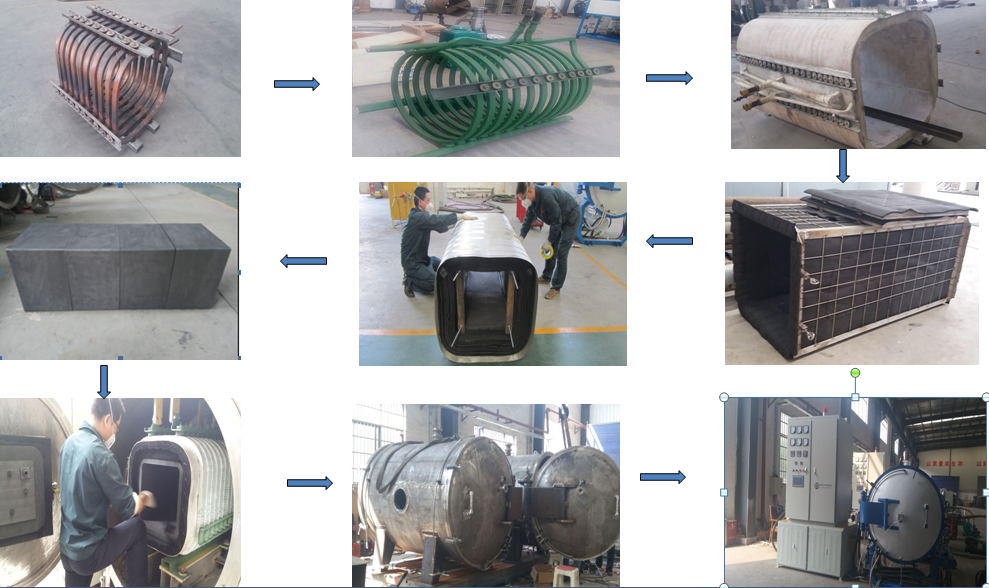

    Production procedure:

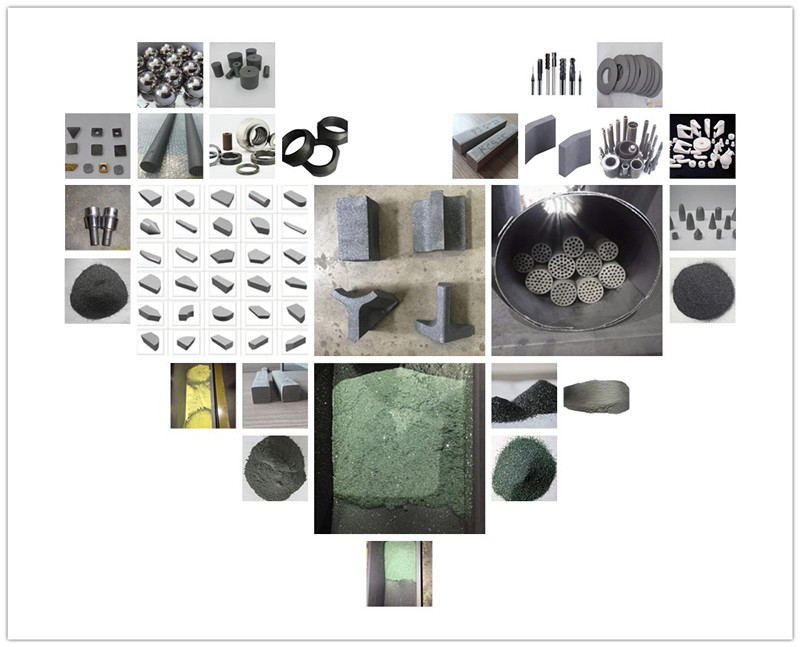

    Raw material suitable for heating:

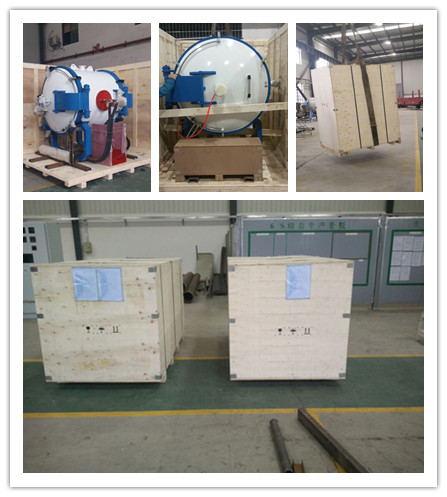

    Packing mode:
